K-lier is the result of redesigning Kivnon's AGV. It is designed with a focus on functionality, safety, new technology, and durability, providing solutions to the needs of an industrial space.

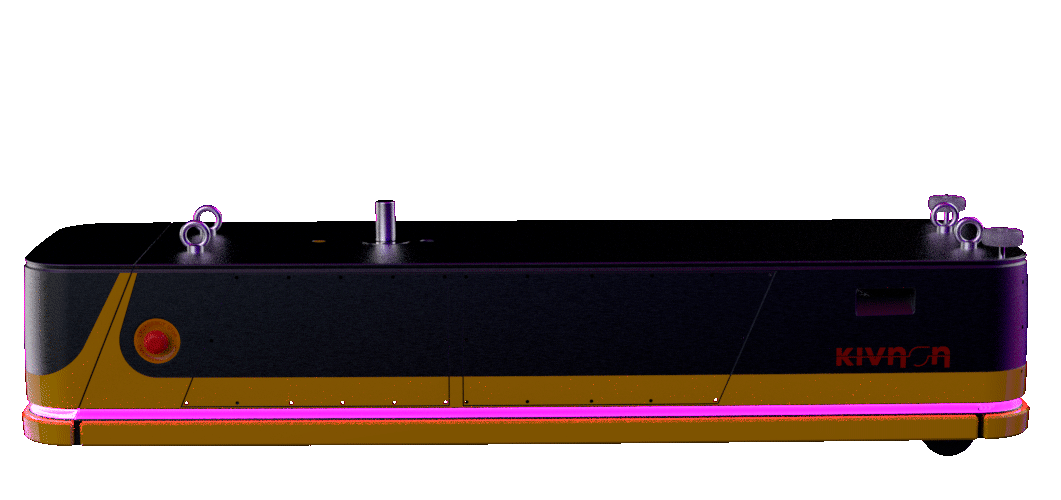

Introducing the Kivnon K10 AGV: a cutting-edge autonomous guided vehicle reimagined for optimal performance.
With a sleek, minimalist design and enhanced functionality, the K10 embodies modernity. Equipped with groundbreaking technologies such as projection mapping and a perimeter safety system, it ensures seamless navigation and maximized safety. Experience the future of AGVs with the all-new Kivnon K10.
design.
It has been completely redesigned while preserving the company's aesthetic line, adding modernity and simplicity while maintaining safety.
technology.
The industrial sensing has been respected, incorporating elements that enhance interaction and reduce maintenance.
repairability.
Through a system of doors and the centralization of its electronic components, repair and replacement have been greatly simplified.
_edited.png)
Sensory and electronic
LiDAR, laser, ultrasonic, security distance
Mechatronic components
Motors, rotors, sliders, drive wheels
Chassis
Optimized chassis and support trays
Weight station
Removable weight rack for traction control
100%
repairable

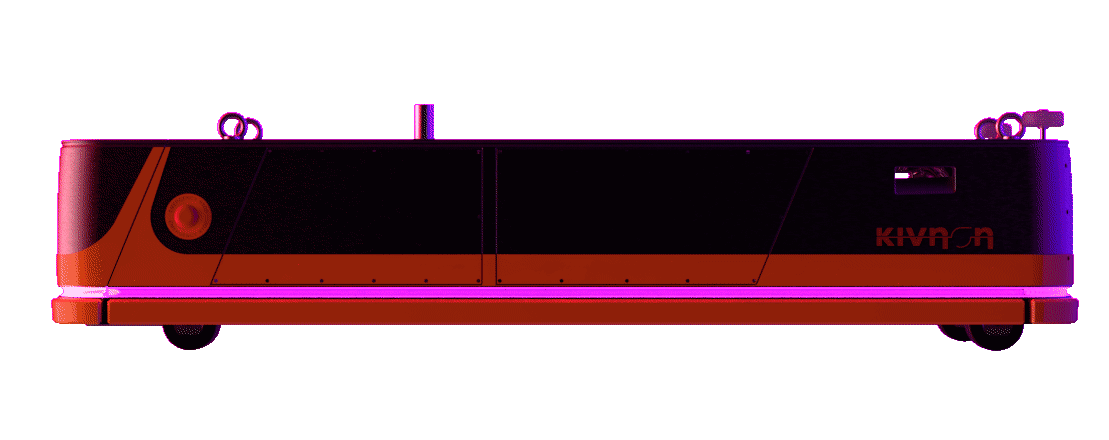

Two fully removable doors have been installed on the side to ensure easy access and replacement of components. Furthermore, to ensure safety in the industrial environment, only authorized personnel will be able to perform maintenance, thanks to the security sealing system with safety screws.

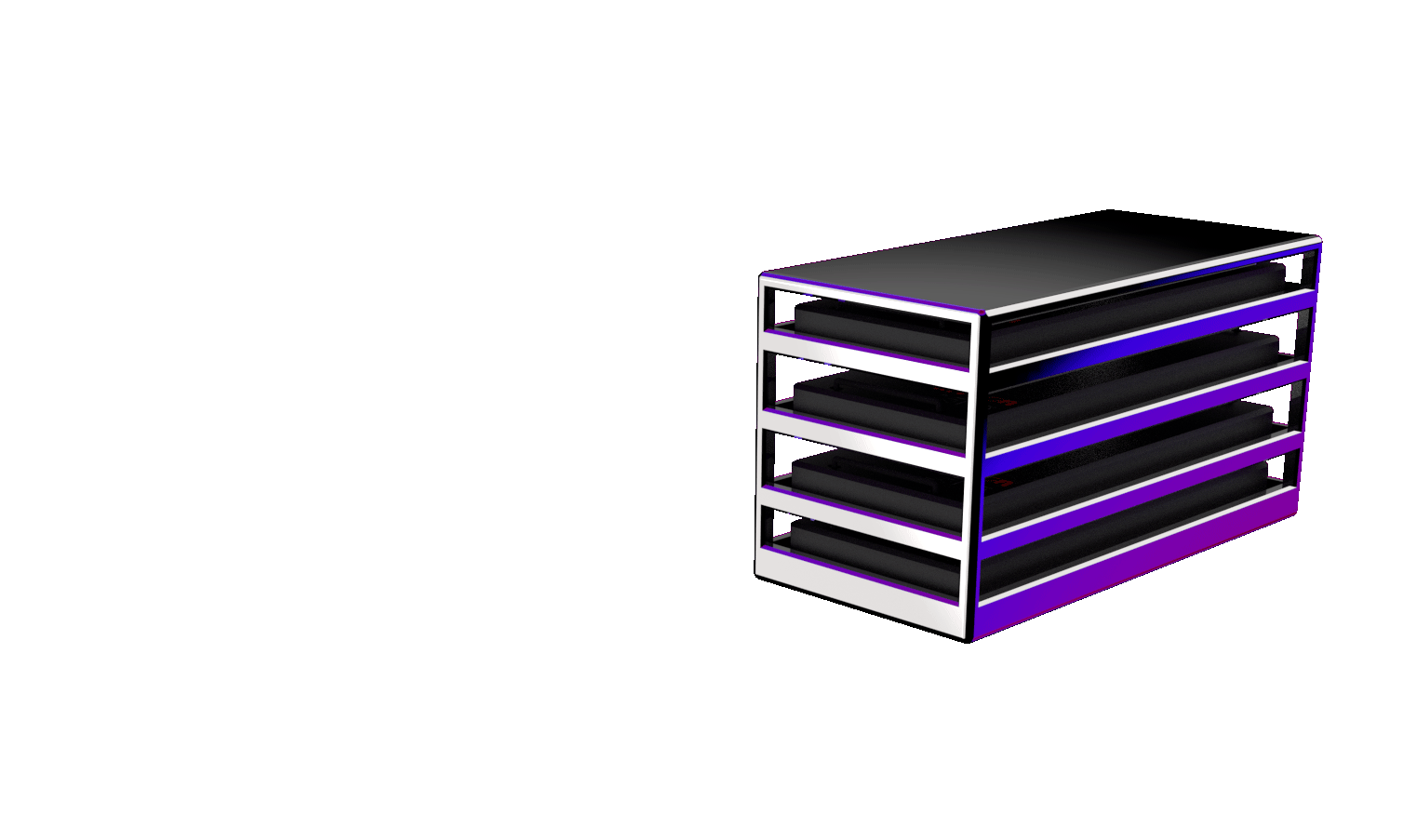

A weight loading station has been created to enable each customer to select the weight of their robot according to their specific requirements.
Weight is essential to guarantee betrayal. In the previous model, the entire AGV was constructed from very thick steel to achieve traction, which made it difficult to machine and costly. Additionally, if more weight was needed, ballast had to be added, increasing the robot's size.

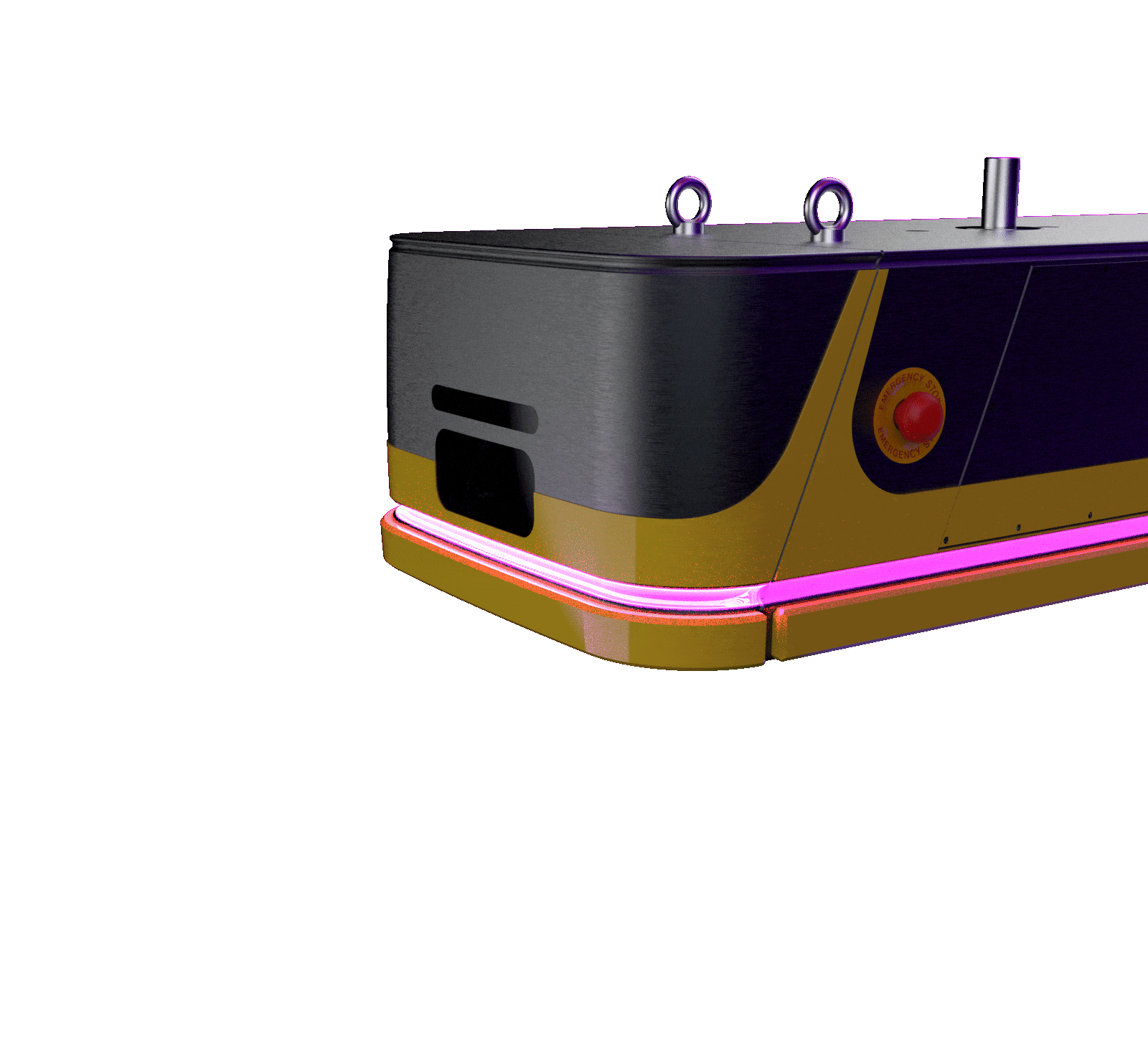

Perimeter Emergency Mushroom System for Total Safety.
An approved emergency mushroom switch has been added, located on the robot's perimeter.
Computational finite element topological optimization.
Two fully removable doors have been installed on the side to ensure easy access and replacement of components. Furthermore, to ensure safety in the industrial environment, only authorized personnel will be able to perform maintenance, thanks to the security sealing system with safety screws.
Completely viable manufacturing thanks to the voxeljet VX2000 and VX4000.
These groundbreaking technologies enable us to create robust and intricate components, ensuring unparalleled quality and precision for our AGV chassis.
less-
maintenance

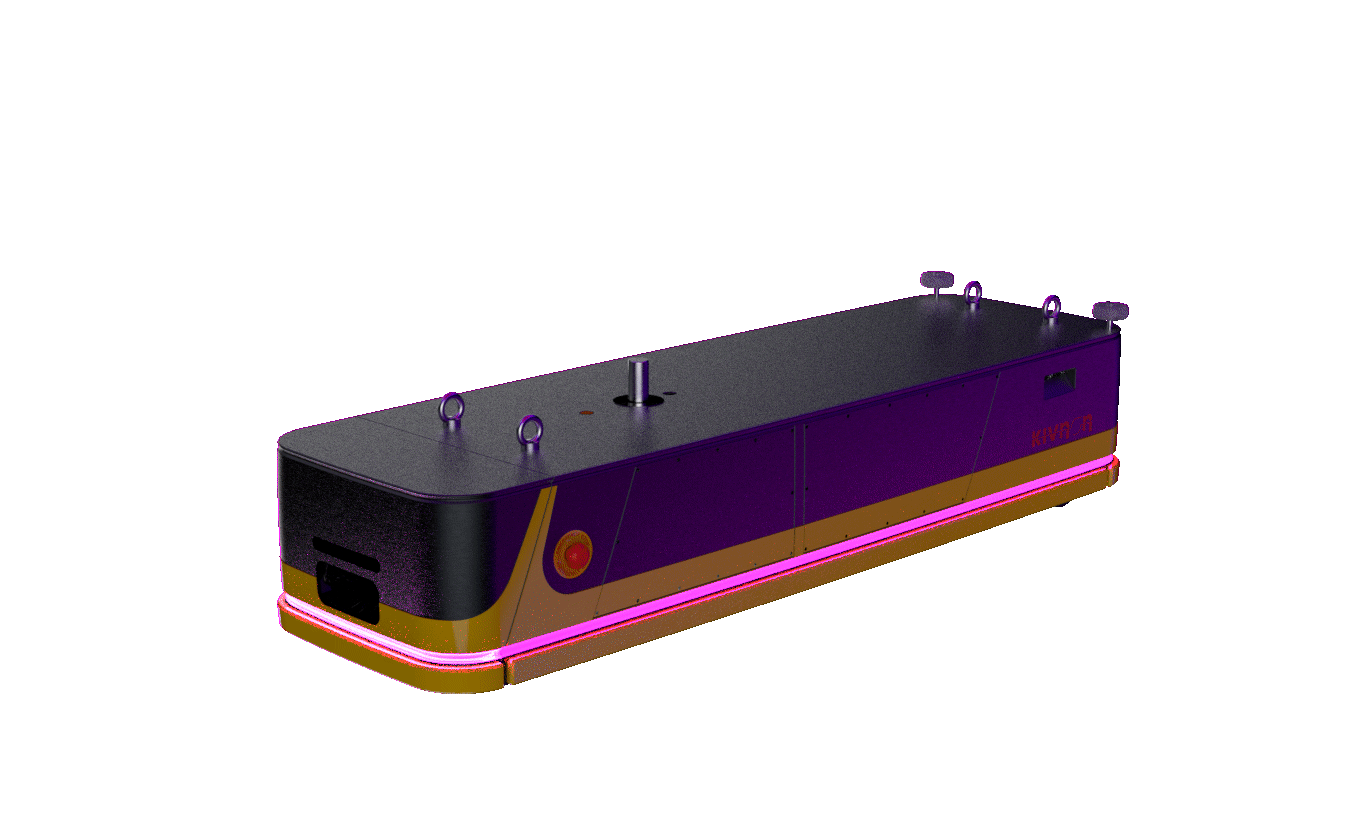

The screen has been replaced with a floor projector, allowing information to be viewed from any point on the robot. By integrating a component that was previously external, breakdowns are prevented, and maintenance is reduced.
The power of computational simulation and materials.
Through a material selection process, we have identified those that have enabled a 68% reduction in weight while maintaining durability, cost-effectiveness, and enhancing sustainability.
PA (40% glass-filled)
Density
1.6g/cm³
Price
2.89€/kg
Hardness Vickers
82HV
Toughness
2000J/m²
Injection molding
able
Typical uses
automotion, aeroespace, etc.
